Dual 120mm Fan Intake w/ pics

Had a single that i made which was shit but worked.


Tools:
Razor Blade
Sharpie
Tape
Hot Glue Gun
Soldering Iron
Drill w/ Drill Bit and Phillips
Metal Cutting Scissors

Materials:
Mix match on some Tupperware

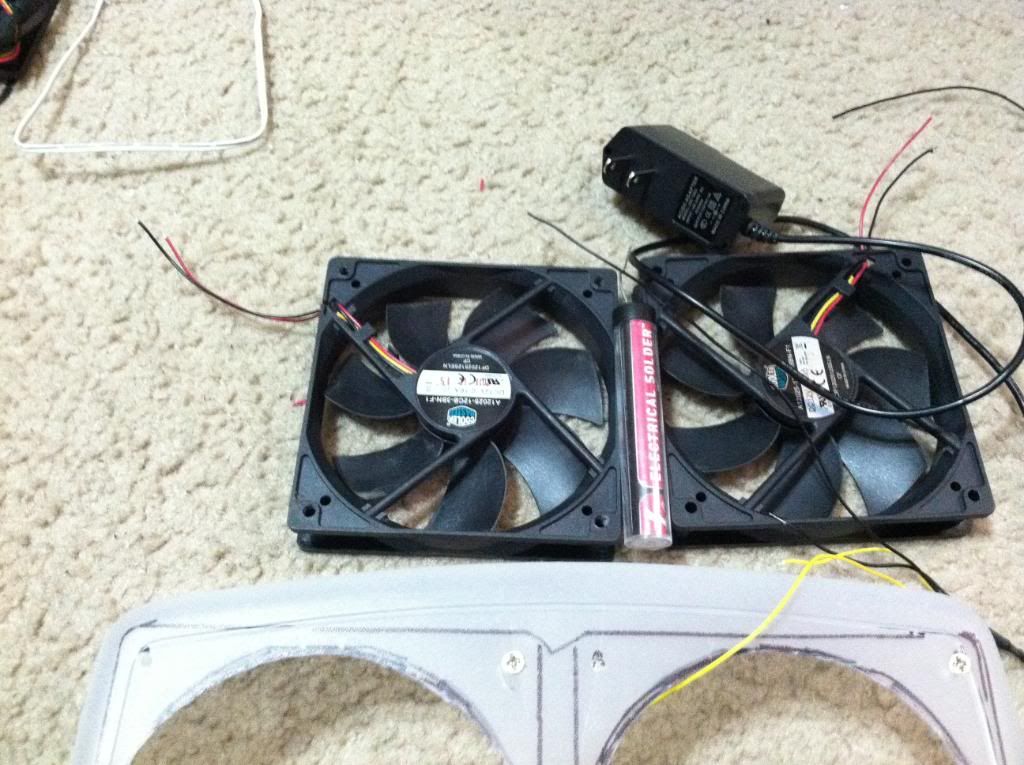

2 120mm 12v PC Fans
1 12v Power Supply
8 Screws To Hold Fans



Step 1

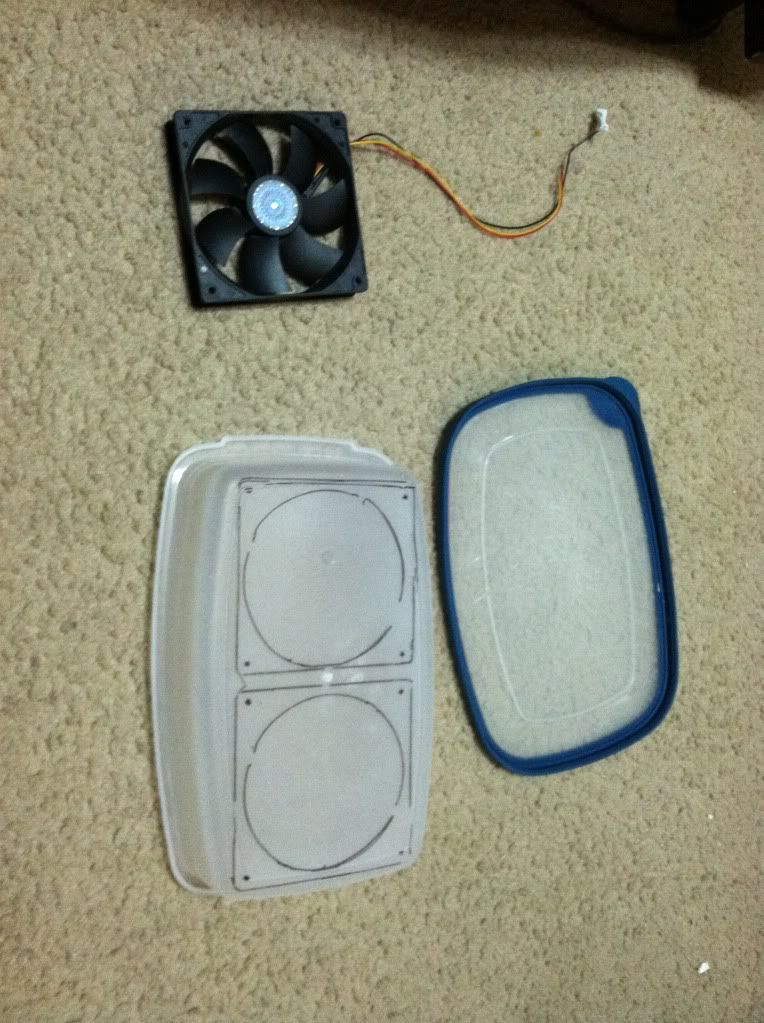

Trace your design of the fans on your container as so.

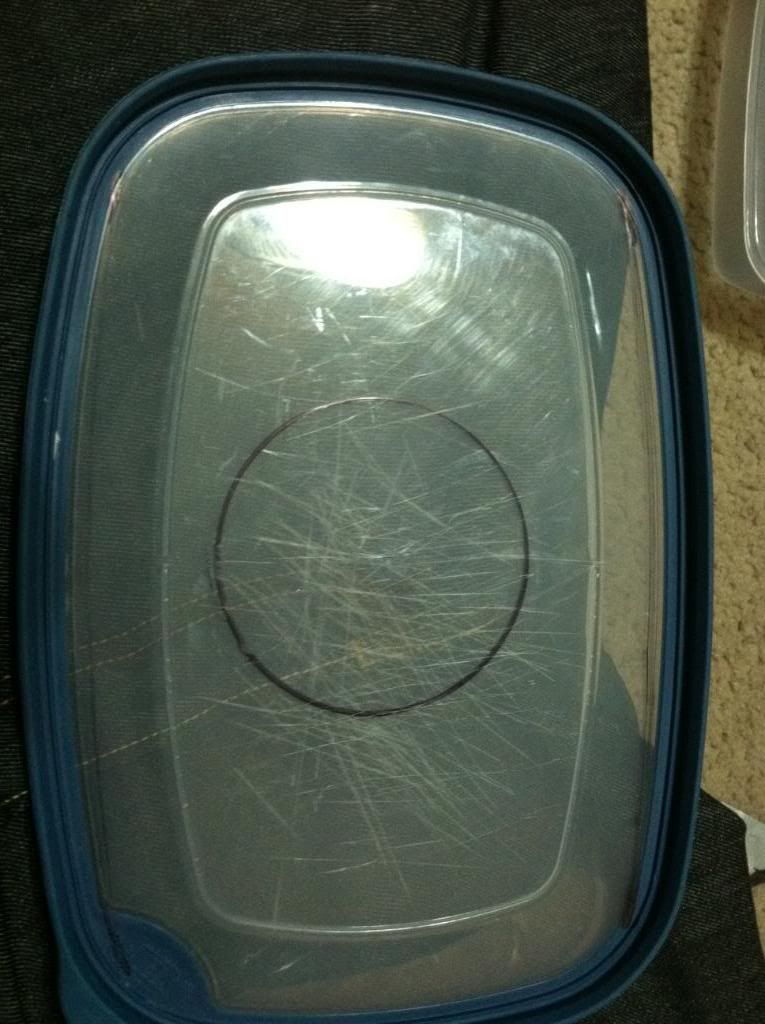

Also Trace the opposite side for the size ventilation tubing you are using.


Step 2

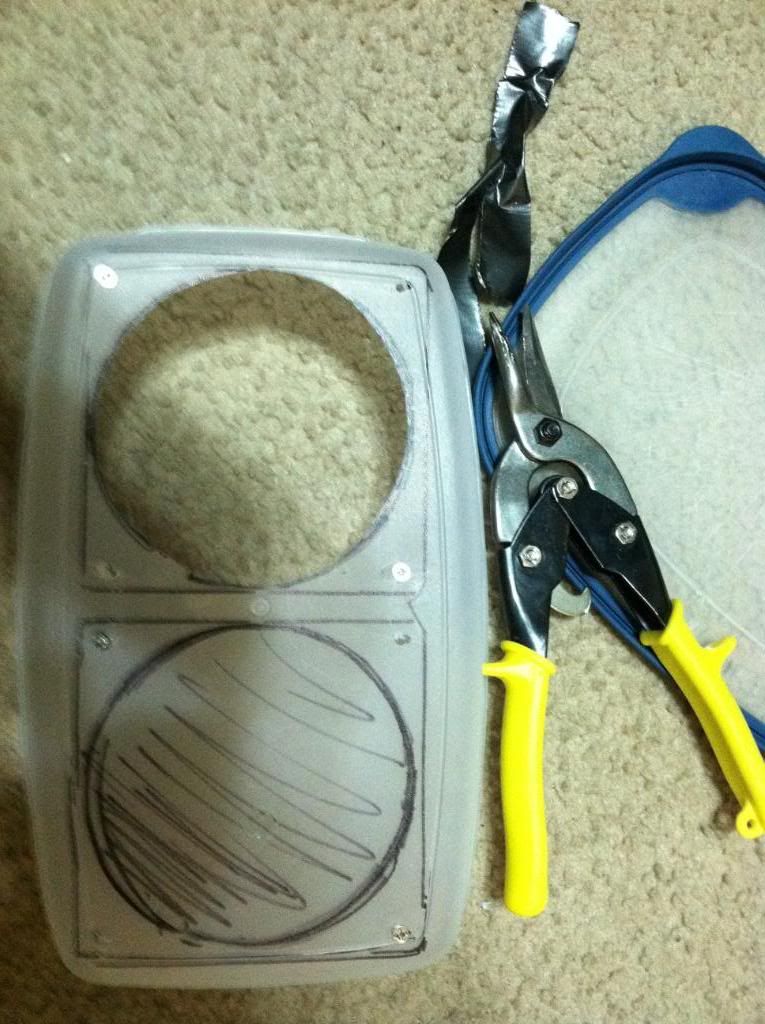

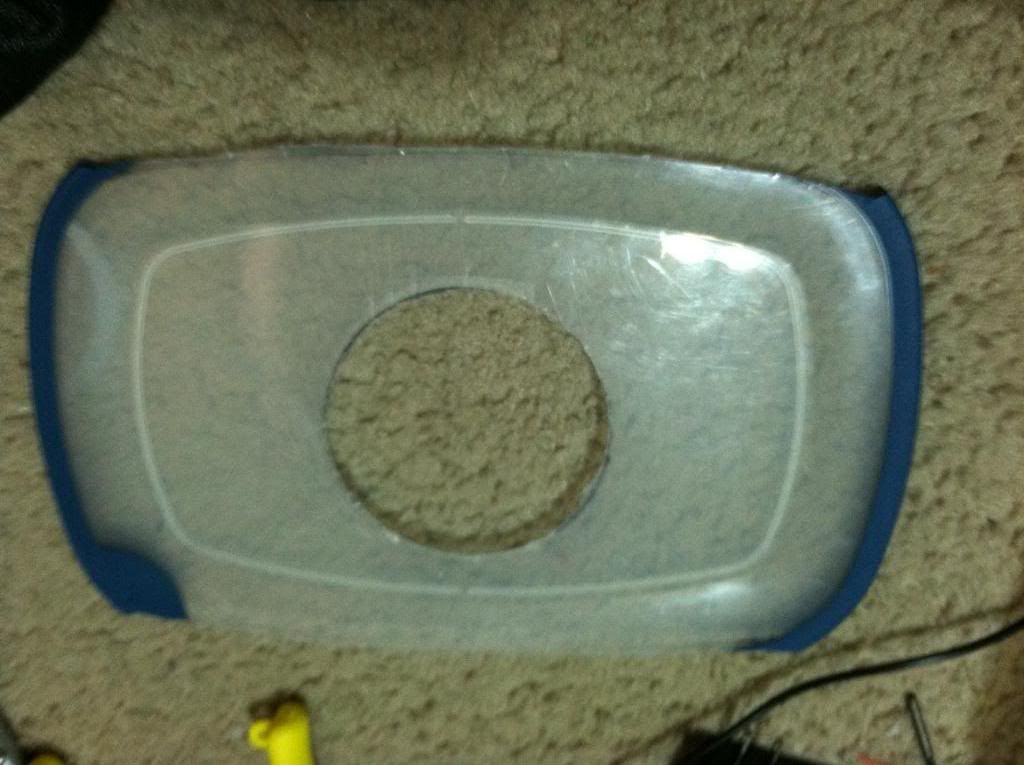

Carefully cut out the wholes so the air can pass through as so.
Carefully drill out the wholes for the screws.


Step 3

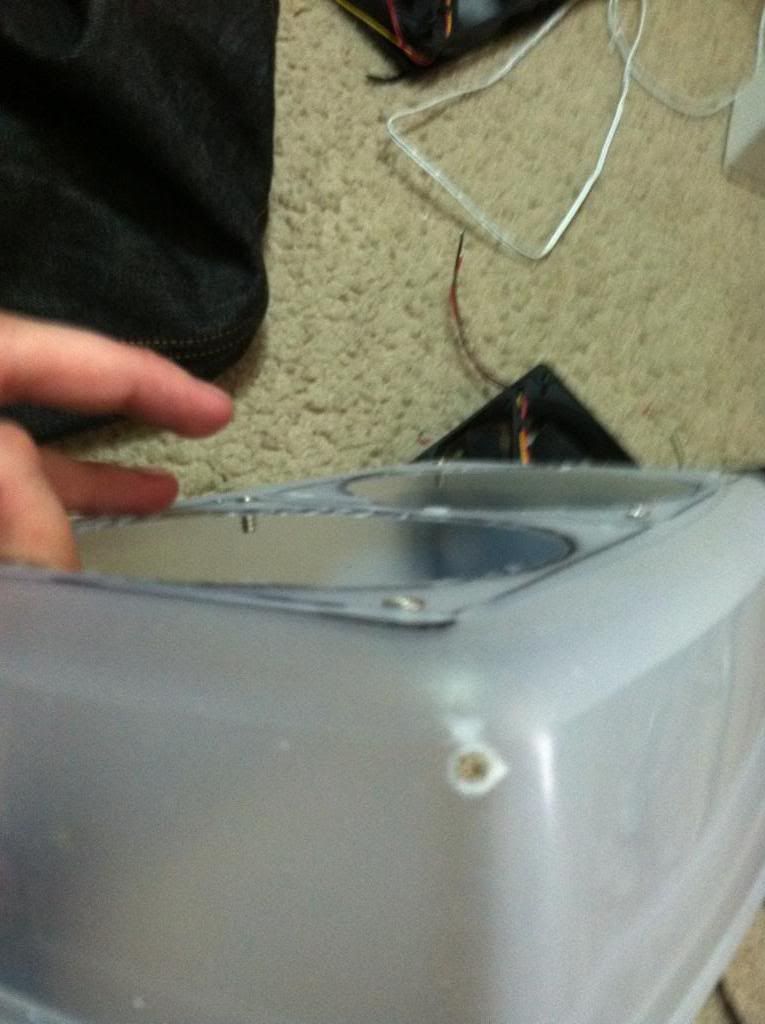

Drill a whole for the power cable.


Step 4

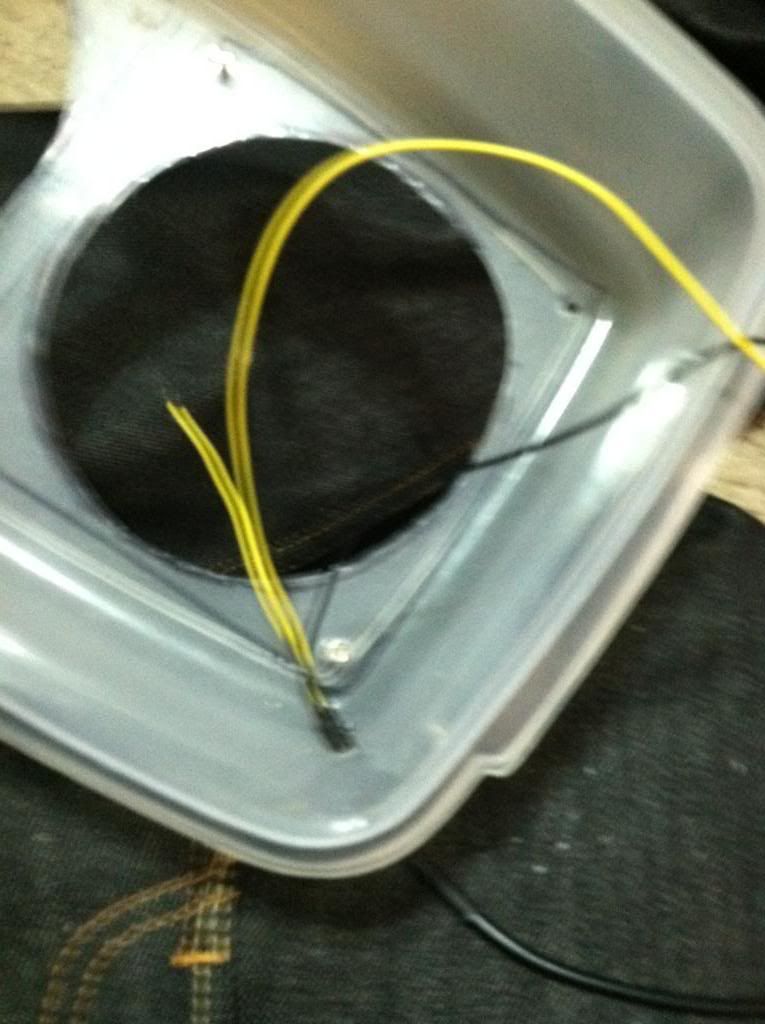

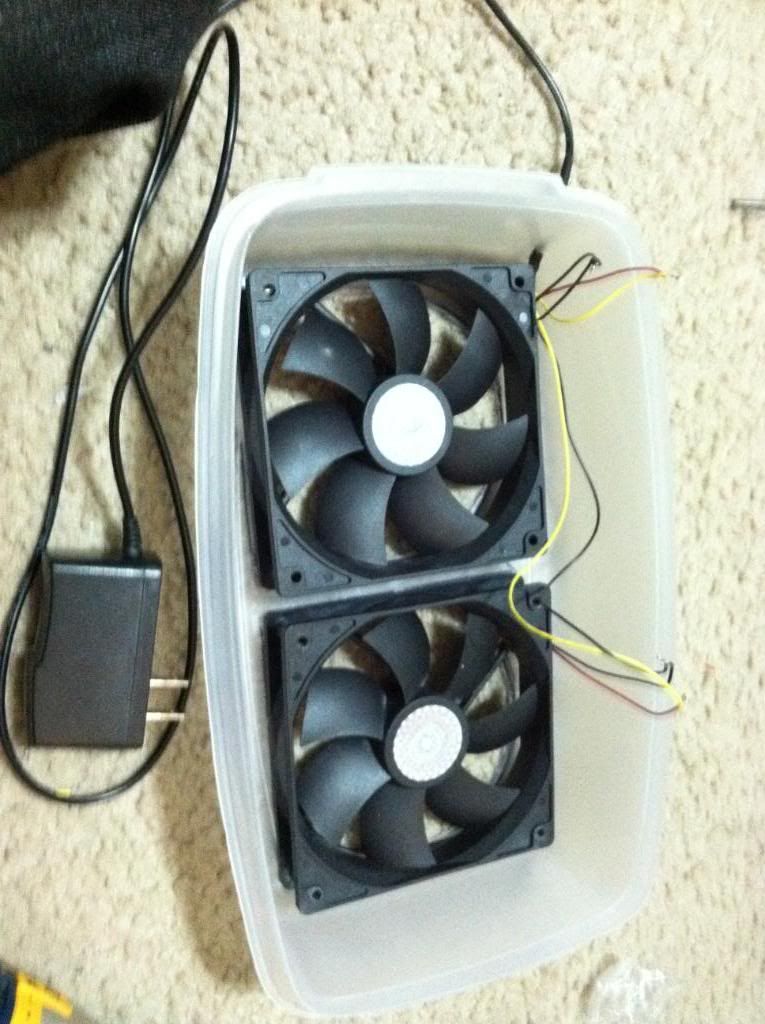

You must run power cable through the whole and screw fans in before you solder.


Step 5

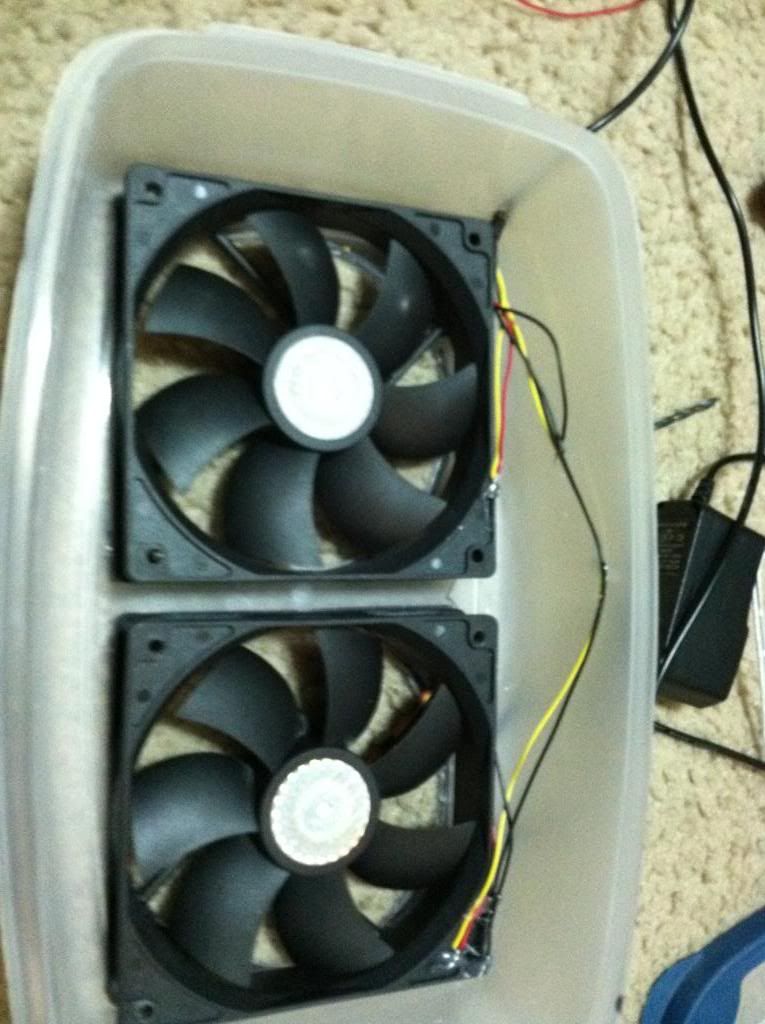

Soldier all connections and test to make sure fans are working.



Step 6

Hot glue wires down so they do not move.
Note I put hot glue over the solder points so i did not need to use tape and the points would not touch.


Step 7

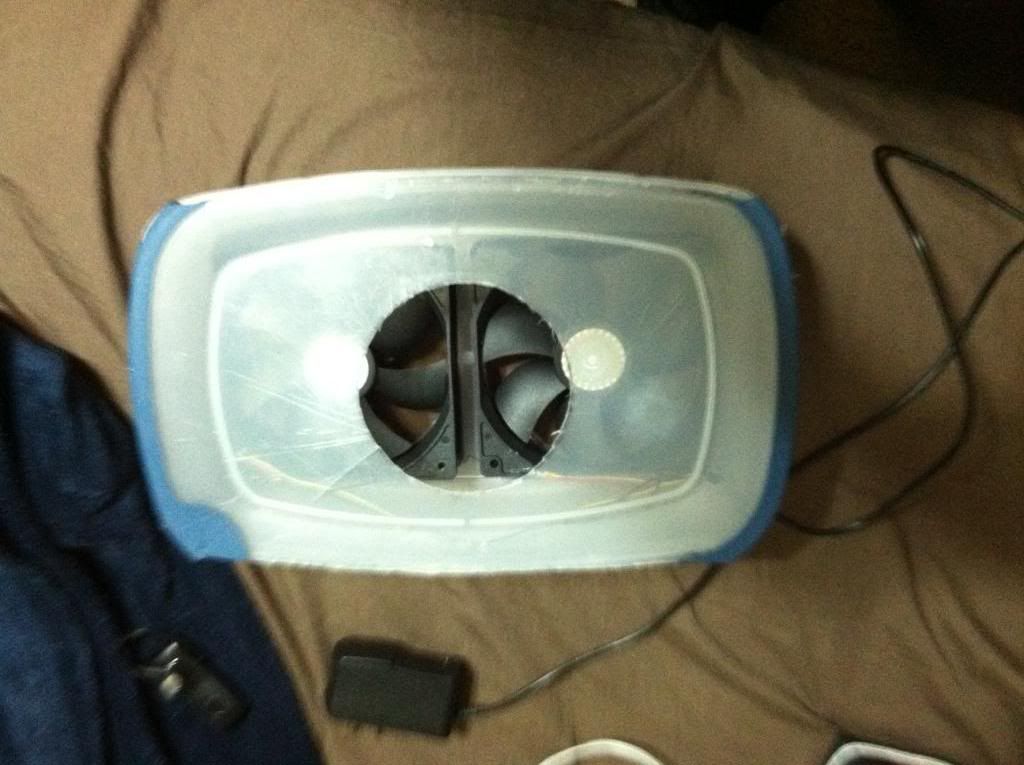

Hot glue the back side together and make sure all seams are glued to avoid air leakage.

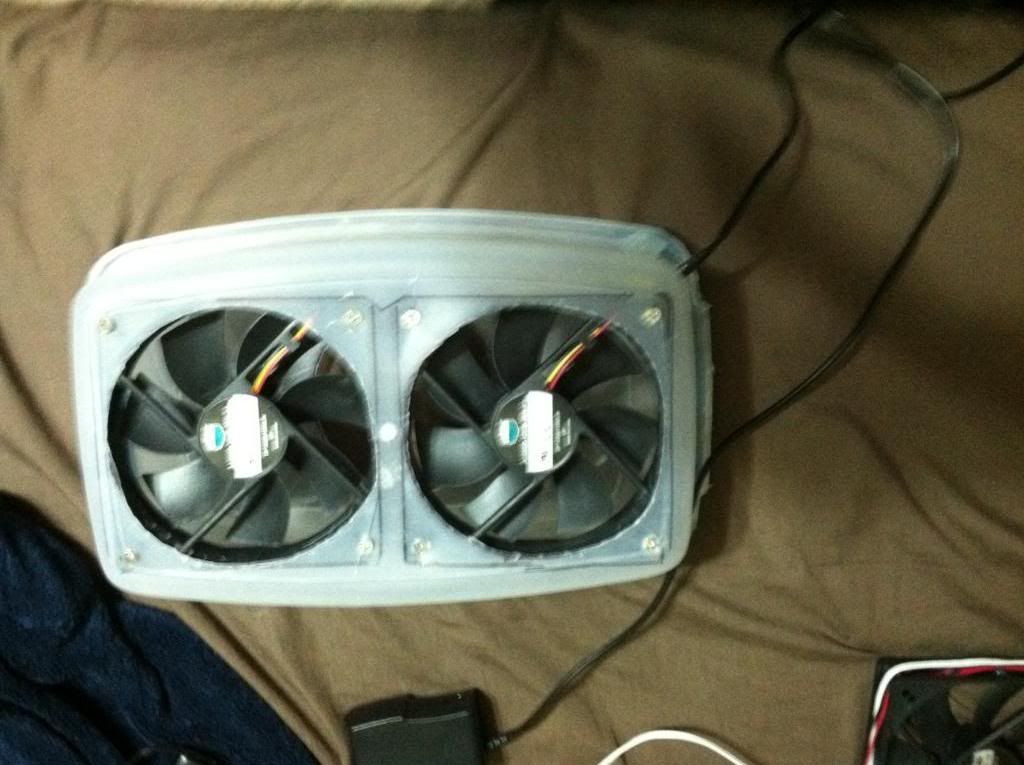

DONE!
voila your done, simple cheap and easy.

You tricky trickster!

Haha my plan is to use it for my cabinet when I move

Awesome easy tutorial! Thanks for sharing with us

logarithmic said:

Awesome easy tutorial! Thanks for sharing with us

Click to expand...

no problem, yea im a broke college student on a budget, i cant just pull twenty bucks out of my ass to buy an inline, so ill use what i got for now.

sweet bro, what are u useing tht to vent an HID?

Great design, love it. I think I may do something similar for my outtake pulling through a DIY scrubber. Nicely done. Thanks for the pics.

Looks great. I'm probably going to use that in my next grow.

Is that an intake into the grow room? Surely it's the out?

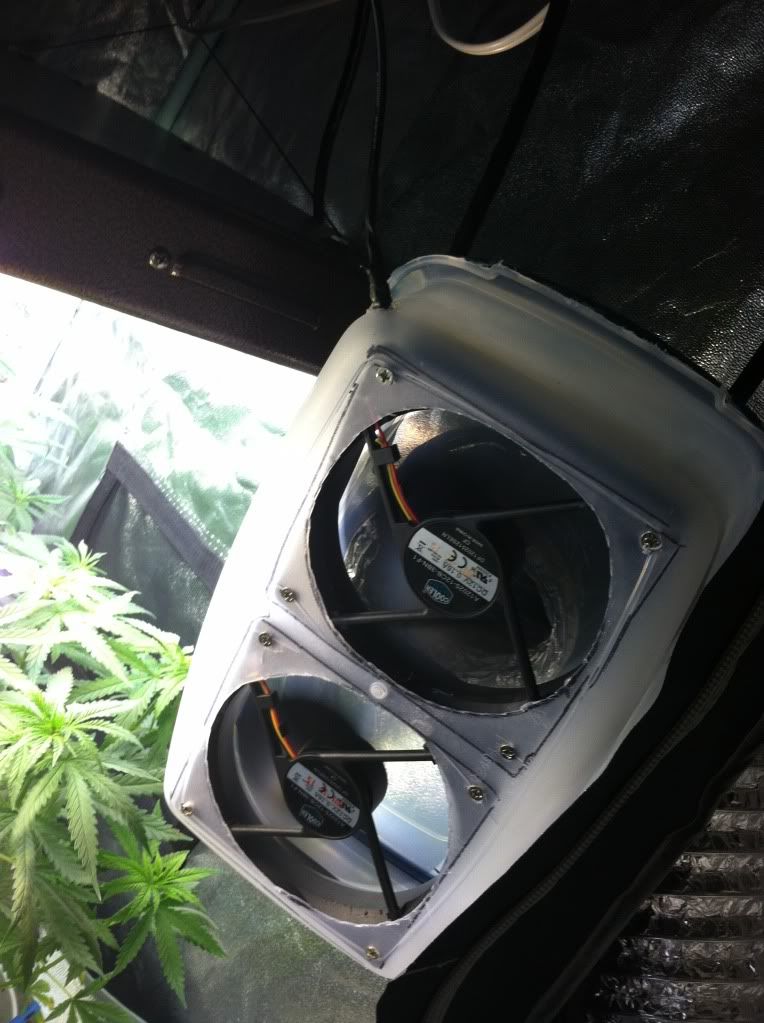

Yea it's an intake and it's for a T5 tent grow that I'm doing it's total intake is 112 cfm While my inline in the tent is 240 they match up pretty good thanks all
